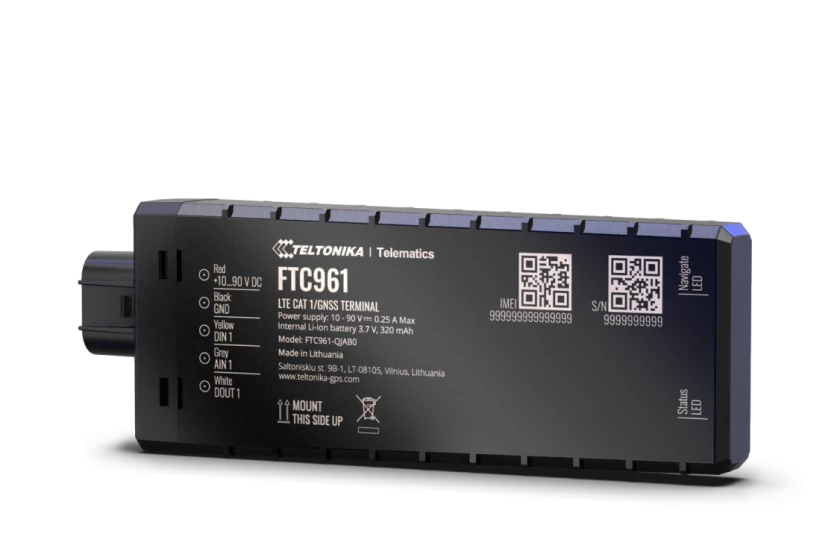

FTC961

FTC961

Next-generation high voltage 4G LTE Cat 1 vehicle GPS tracker with enhanced GNSS accuracy and IP69K resistance

Compare

Description

FTC961

Next-generation high voltage 4G LTE Cat 1 vehicle GPS tracker with enhanced GNSS accuracy and IP69K resistance

Additional information

Product

Model name: FTC961-QJAB0

GNSS

GNSS: GPS, GLONASS, GALILEO, BEIDOU

Receive type: 135 tracking/acquisition channels

Tracking sensitivity: -165 dBM

Position Accuracy: < 1.8 m CEP

Velocity Accuracy: < 0.1 m/s (within +/- 15% error)

Cellular

2G bands: GSM: B2/B3/B5/B8

4G LTE bands: LTE FDD (CAT 1): B1/B3/B5/B7/B8/B20/B28

Data transfer: LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL)

GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL)

Transmit power: Class 5 for GSM850/900: 30±5dBM

Class 3 for GSM1800/1900: 29±5dBM

Class 3 for LTE-FDD: 26±5dBM

Data support: SMS (TEXT, PDU), Network protocols (TCP)

Data codec

Codec support: Codec 8 Extended

Power

Input voltage range: 10–90 V

Internal Back-up battery: 320 mAh Li-Ion battery 3.7V (1.18 Wh)

Internal fuse: 3A, 125V

Power consumption: TBA

Physical specification

Dimensions: 118 x 48 x 18.5 mm (L x W x H)

Weight: 118 g

Operating environment

Operating temperature (without battery): -40 °C to +85 °C

Storage temperature (without battery): -40 °C to +85 °C

Operating temperature (with battery): -20 °C to +40 °C

Storage temperature (with battery): -20 °C to +60 °C

Operating humidity: 5% to 95% non-condensing

Ingress Protection Rating: IP69

Battery charge temperature: 0 °C to +45 °C

Battery discharge temperature: -20 °C to +60 °C

Battery storage temperature: -10 °C to +50 °C for 1 month

-10 °C to +35 °C for 3 months

0 °C to +30 °C for 1 year

Interface

Digital Inputs: 1

Digital Outputs: 1

Analog Inputs: 1

GNSS antenna: Internal High Gain

Cellular antenna: Internal GSM High Gain

USB: 2.0 USB Micro B

LED indication: 2 status LED lights

SIM: Nano-SIM

Memory: 32Mb internal flash memory

Features

Sensors: Accelerometer

Scenarios: Over Speeding detection, Jamming detection, Unplug detection, Trip

Configuration and firmware update: FOTA Web, Teltonika Configurator (TCT)

SMS: Configuration, Events, Debug:

GPRS commands: Configuration, Debug:

Time Synchronization: GNSS, NITZ, NTP

Ignition detection: Digital Input 1, Accelerometer, External Power Voltage

Certification & approvals

Regulatory: In progress
