FTC921
Next-generation high voltage 4G LTE Cat 1 vehicle GPS tracker with enhanced GNSS accuracy
FTC921
FTC921
Next-generation high voltage 4G LTE Cat 1 vehicle GPS tracker with enhanced GNSS accuracy
Additional information

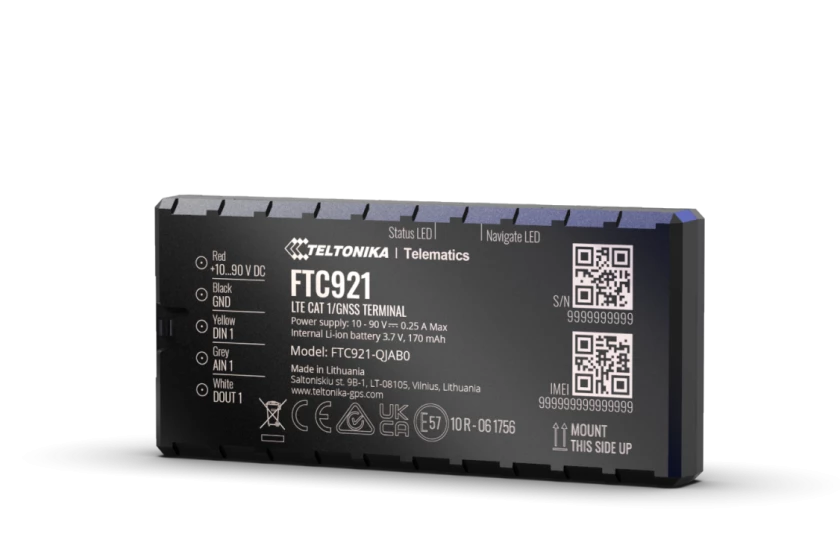

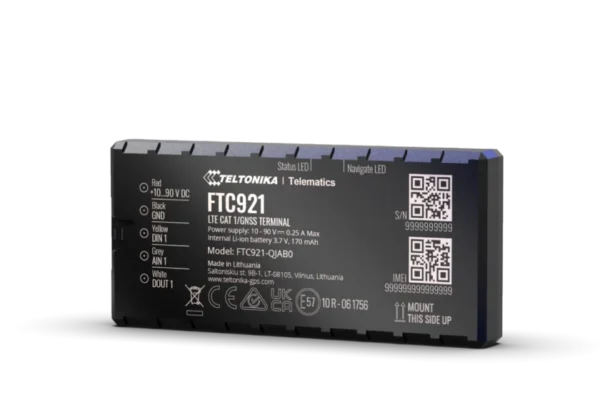

| Product | Model name: FTC921-QJAB0 |
|---|---|
| GNSS | GNSS: GPS, GLONASS, GALILEO, BEIDOU Receive type: 135 tracking/acquisition channels Tracking sensitivity: -165 dBM Position Accuracy: < 1.8 m CEP Velocity Accuracy: < 0.1 m/s (within +/- 15% error) |
| Cellular | 2G bands: GSM: B2/B3/B5/B8 4G LTE bands: LTE FDD (CAT 1): B1/B3/B5/B7/B8/B20/B28 Data transfer: LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL) GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL) Transmit power: Class 5 for GSM850/900: 30±5dBM Class 3 for GSM1800/1900: 29±5dBM Class 3 for LTE-FDD: 26±5dBM Data support: SMS (TEXT, PDU), Network protocols (TCP) |
| Data codec | Codec support: Codec 8 Extended |
| Power | Input voltage range: 10–90 V Internal Back-up battery: 170 mAh Li-Ion battery, 3.7 V (0.63 Wh) Internal fuse: 3A, 125V Power consumption: TBA At 12V < 25 mA (nominal with no load) At 12V < 0.25A Max (with full Load/Peak) |
| Physical specification | Dimensions: 93 x 43 x 12.5 mm (L x W x H) Weight: 65 g |
| Operating environment | Operating temperature (without battery): -40 °C to +85 °C Storage temperature (without battery): -40 °C to +85 °C Operating temperature (with battery): 0 °C to +40 °C Storage temperature (with battery): -20 °C to +60 °C Operating humidity: 65 ± 20% non-condensing Ingress Protection Rating: IP41 Battery charge temperature: 0 °C to +45 °C Battery discharge temperature: -20 °C to +60 °C Battery storage conditions: 65 ± 20%RH -20 °C to +25 °C for 3 or more months |
| Interface | Digital Inputs: 1 Digital Outputs: 1 Analog Inputs: 1 GNSS antenna: Internal High Gain Cellular antenna: Internal GSM High Gain USB: USB 2.0 USB Type-C LED indication: 2 status LED lights SIM: Nano-SIM Memory: 128MB internal flash memory |
| Features | Sensors: Accelerometer Scenarios: Over Speeding detection, Jamming detection, Unplug detection, Configuration and firmware update: FOTA Web, Teltonika Configurator (TCT) SMS: Configuration, Events, Debug GPRS commands: Configuration, Debug Time Synchronization: GNSS, NITZ, NTP Ignition detection: Digital Input 1, Accelerometer, External Power Voltage |
| Certification & approvals | Regulatory: FTC921-QJAB0: CE/RED, E-Mark, RCM*, RoHS, REACH, Pulse 5b |
